Understanding Warehouse Racking Basics
What is Warehouse Racking?
Warehouse racking refers to the structures used to store goods within a warehouse or storage facility. These structures are designed to support and organize inventory, making it easier to access, retrieve, and manage products. Racking systems come in a wide variety of types, each tailored to different storage needs and product characteristics.
Importance of Warehouse Racking
Space Optimization
One of the primary functions of warehouse racking is to maximize the use of available space. By storing goods vertically, warehouses can make the most of their floor area and ceiling height.
Inventory Management
Racking systems facilitate better inventory management. They allow for organized storage, making it easier to locate and retrieve specific items. With clear aisleways and designated storage locations, warehouse staff can quickly access products, reducing the time spent on inventory searches. This is crucial for businesses that need to fulfill orders promptly and efficiently.
Product Protection
Well - designed racking systems help protect stored goods. By keeping products off the floor and properly supported, the risk of damage from moisture, pests, and accidental impacts is reduced. For instance, fragile items can be stored on specialized racks with cushioning or in enclosed compartments, ensuring their safety during storage and handling.
Types of Warehouse Racking Systems
Pallet Racking
Pallet racking is one of the most common types of warehouse racking. It is designed to store products on pallets, which are then placed on the racking structure. Pallet racking systems are highly versatile and can be customized to fit different pallet sizes and load capacities.

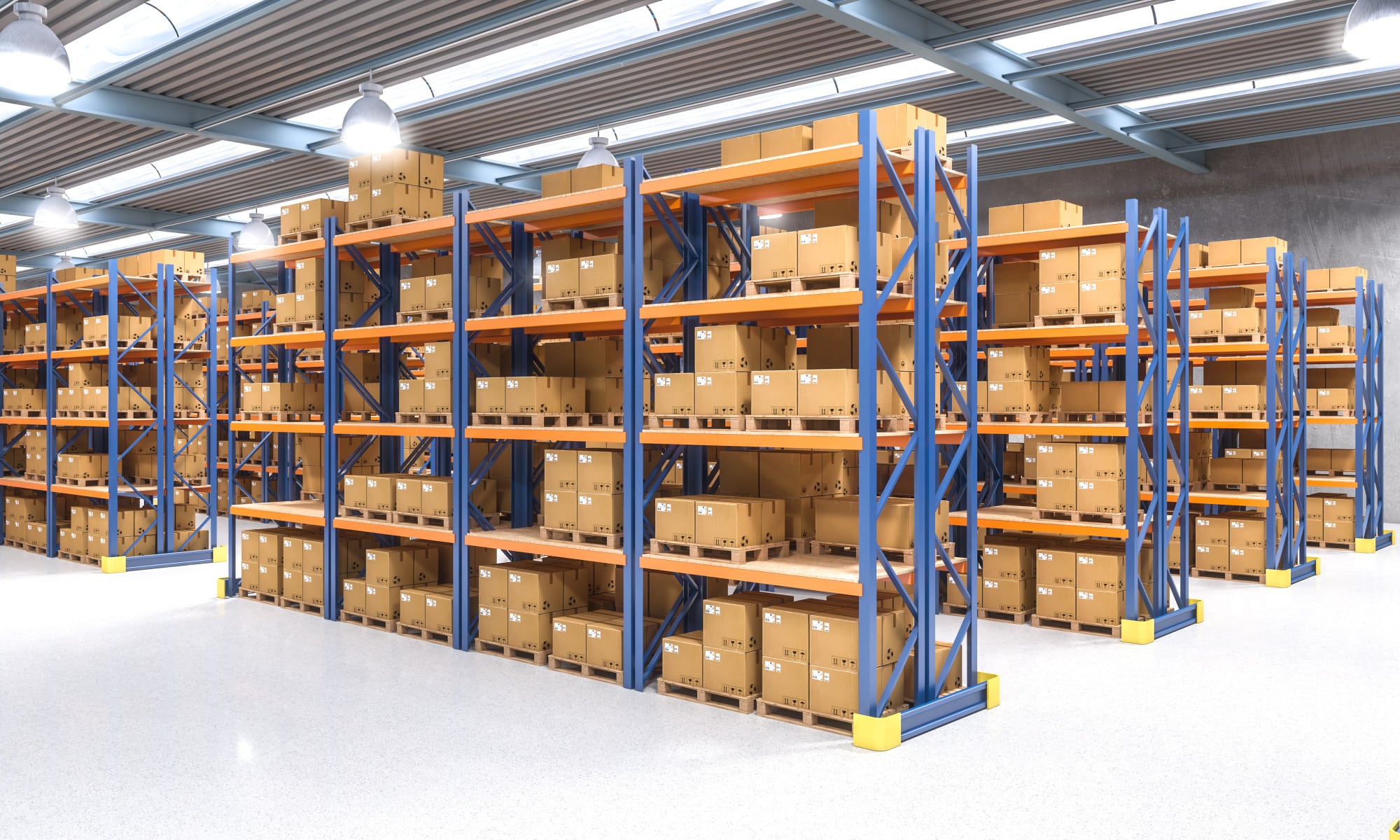

Selective Pallet Racking
Selective pallet racking allows for direct access to each pallet. This type of racking consists of upright frames and horizontal beams, creating individual storage bays. It is ideal for warehouses with a high turnover of inventory and a need for quick access to specific pallets. For example, in a grocery distribution center, selective pallet racking can be used to store different types of food products, with each pallet easily accessible for order fulfillment.
High - Density Racking Systems
High - density racking systems are designed to maximize storage density in a warehouse. These systems are especially useful in facilities with limited space but a high volume of inventory.
Push - back Racking
Push - back racking uses a system of carts or pallets that are placed on inclined tracks. When a new pallet is inserted, it pushes the existing pallets back. This system allows for high - density storage while still providing semi - selective access to pallets. It is often used in warehouses where space is limited, but some level of product accessibility is required. For example, in a clothing distribution center, push - back racking can be used to store seasonal clothing items.
Mobile Racking
Mobile racking systems consist of racks that are mounted on wheels or tracks. These racks can be moved horizontally, allowing for the creation of aisleways only when needed. Mobile racking is highly space - efficient and can be used in various types of warehouses, including those with limited floor space. In a cold storage facility, mobile racking can be used to store perishable goods, as it helps to minimize the amount of cold air that escapes when accessing products.
Specialty Racking Systems
Cantilever Racking
Cantilever racking is designed to store long and bulky items, such as lumber, pipes, and steel bars. It consists of a series of arms or cantilevers that extend from a vertical support structure. Cantilever racking allows for easy access to these items, as they can be loaded and unloaded from the side. For example, in a construction materials warehouse, cantilever racking is commonly used to store large lengths of timber.
Mezzanine Racking
Mezzanine racking creates an additional level of storage within a warehouse. It is a platform - like structure that is built above the ground level, supported by columns and beams. Mezzanine racking can be used to store a variety of items, including small parts, packaged goods, and even office equipment. It is a great way to increase storage capacity without expanding the physical footprint of the warehouse. For example, in an electronics warehouse, mezzanine racking can be used to store smaller electronic components.
|
Racking System
|
Approximate Space Utilization Increase Compared to Floor - Level Storage
|
|
Selective Pallet Racking
|
2 - 3 times
|
|
Drive - in Racking
|
3 - 4 times
|
|
Push - back Racking
|
3 - 5 times
|
|
Mobile Racking
|
4 - 6 times
|
Warehouse Racking Layout and Design
Factors Influencing Layout
Product Characteristics
The type, size, and weight of the products being stored play a significant role in determining the racking layout. For example, heavy and large items may require more robust racking systems with wider aisles for forklift access, while small and lightweight items can be stored in more compact and dense racking systems.
Warehouse Size and Shape
The physical dimensions and layout of the warehouse also impact the racking design. A rectangular - shaped warehouse may be more conducive to a linear racking layout, while a square - shaped warehouse may allow for a more flexible, grid - like layout. Additionally, the height of the warehouse will determine the maximum number of racking levels that can be installed.
Designing an Efficient Layout
Aisle Planning
Proper aisle planning is crucial for efficient material handling. Aisles should be wide enough to allow for the safe passage of material handling equipment, but not so wide that they waste valuable floor space. In general, forklift - operated aisles should be at least 3 - 4 meters wide, depending on the size of the forklift and the turning radius required.
Zone Allocation
Warehouses can be divided into different zones based on product categories, turnover rates, or storage requirements. For example, high - turnover products can be stored in easily accessible areas near the shipping and receiving docks, while low - turnover products can be placed in more remote areas.
Pallet Racking Weight and Capacity
Understanding Weight Ratings
Pallet racking systems are designed to support specific weight loads. The weight rating of a racking system is determined by several factors, including the thickness and strength of the uprights, beams, and other components. It is essential to understand the weight ratings of the racking system to ensure safe and efficient storage.
Uniform Load Capacity
Uniform load capacity refers to the maximum weight that can be evenly distributed across a single shelf or level of the racking system. For example, a pallet racking system may have a uniform load capacity of 1000 kg per shelf. This means that if the weight is evenly distributed, each shelf can support up to 1000 kg.
Factors Affecting Weight Capacity
Racking Material
The type of material used in the construction of the racking system can significantly impact its weight capacity. Steel is a commonly used material for pallet racking due to its high strength and durability. Different grades of steel will have different strength characteristics, which in turn will affect the weight capacity of the racking.
Racking Configuration
The way the racking system is configured, including the number of uprights, the spacing between beams, and the height of the racking, can also affect its weight capacity. For example, a racking system with more uprights and closer beam spacing will generally have a higher weight capacity.
Comparing Racking System Competitors
Competitor Analysis in the Pallet Racking Market
Cost - Effectiveness
When comparing different pallet racking manufacturers, cost is an important factor. Some manufacturers may offer lower - priced racking systems, but these may be of lower quality and have a shorter lifespan. Others may offer higher - quality racking at a higher cost, but with better durability and load - bearing capacity. For example, Manufacturer A may offer a basic selective pallet racking system at a cost of
500perbay,whileManufacturerBoffersasimilar−sizedbuthigher−qualitysystemat
700 per bay. However, Manufacturer B's system may have a 10 - year warranty, while Manufacturer A's has only a 5 - year warranty.
Customization Options
The ability to customize racking systems is another point of competition. Some manufacturers may offer a wide range of customization options, allowing businesses to tailor the racking to their specific needs. For example, Manufacturer C may offer different beam lengths, upright heights, and color options, while Manufacturer D has a more limited range of customization.
Comparing High - Density Racking Competitors
Space Optimization Capabilities
For high - density racking systems, space optimization is a key competitive factor. Some manufacturers may offer more efficient designs that can increase storage density by a greater percentage. For example, Manufacturer G's push - back racking system may be able to increase storage density by 50%, while Manufacturer H's system can achieve a 60% increase.
Product Accessibility
While high - density racking is about maximizing storage, product accessibility is also important. Some manufacturers may offer designs that provide better access to products, even in a high - density environment. Manufacturer I's mobile racking system may allow for faster access to individual pallets compared to Manufacturer J's system.
FAQs
Q1: How do I choose the right type of warehouse racking for my business?
A1: Consider factors such as the type and size of products you store, your warehouse layout, material handling equipment, and budget. If you have large, heavy pallets, selective pallet racking may be suitable. For space - constrained warehouses, high - density racking like push - back or mobile racking could be a better option.
Q2: What is the maximum weight a pallet racking system can hold?
A2: The maximum weight depends on the type of racking, its material, and configuration. Selective pallet racking can typically hold anywhere from 500 kg to several tons per bay, depending on the design. Always check the manufacturer's specifications for the exact weight capacity of the racking system you are considering.
